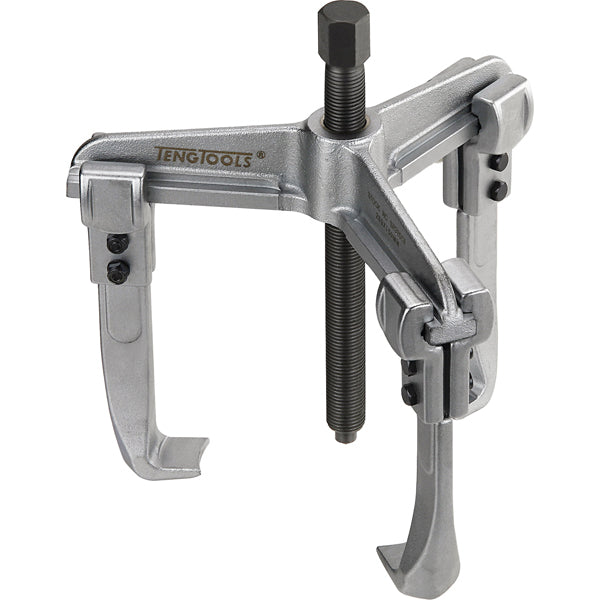

Teng 3-Arm Universal Int/Ext Puller 205/260x150mm

Description

This Teng Tools three-arm universal puller makes quick work of removing pulleys, wheels and bearings. The legs reverse easily for internal or external pulling, and the drop-forged construction is built for strength and durability. It spreads up to 205 mm externally and 260 mm internally, has a 150 mm clamping depth and an M20 x 2.0 spindle thread with a 22 mm hex, and is rated to 9000 kg.

Features:

• Three-leg puller for pulleys, wheels and bearings
• Easily reversible legs for internal or external pulling
• Drop-forged for strength and durability
• Maximum spread of 205 mm external and 260 mm internal
• 150 mm clamping depth
• M20 x 2.0 spindle thread with 22 mm hex
• 9000 kg capacity

Specifications:

• Product Type: Pullers
• Jaw depth: 20 mm
• No. of jaws/arms: 3
• Reversible arms: Yes
• Hex drive size: 22 mm
• Clamping depth: 150 mm
• Jaw thickness: 3.8 mm
• Max. external spread: 205 mm
• Max. internal spread: 260 mm
• Spindle length: 210 mm
• Spindle thread: M20 x 2.0
• Capacity: 9000 kg
• Weight: 4121 g
