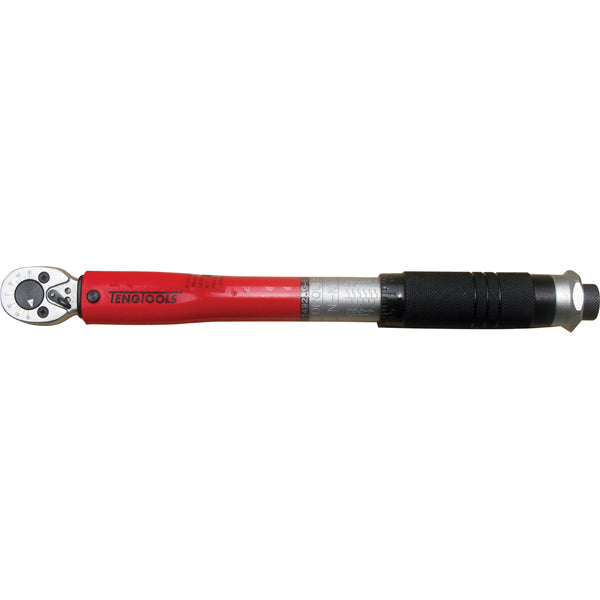

Teng 1/4in Dr. Torque Wrench 5-25Nm / 4-18ft/lb

Description

This Teng Tools 1/4" drive torque wrench covers 5–25 Nm with ±4% accuracy, plus a 4–18 ft-lb reference scale. Its click mechanism has a built-in angular gauge, and the reversible 24-tooth ratchet is made to DIN 3122 with a 15° swing arc. A flip reverse lever allows one-handed direction changes, and a twist lock secures your setting. The handle is marked to show where to apply pressure, and it comes in a protective storage case.

Features:

• 5–25 Nm range with ±4% accuracy
• Additional 4–18 ft-lb reference scale
• Scale resolution of 0.1 Nm and 0.075 ft-lb
• Click mechanism with built-in angular gauge
• Reversible 24-tooth ratchet to DIN 3122 with a 15° swing arc
• Flip reverse lever for one-handed direction changes
• Twist lock secures the set torque
• Handle markings show where to apply pressure
• Supplied in a protective storage case

Specifications:

• Product Type: Torque Wrenches
• Drive: 1/4"
• No. of teeth: 24
• Scale resolution: 0.1 Nm
• Secondary scale resolution: 0.075 ft-lb
• Accuracy: ±4%
• Conformance certificate: Factory
• Reverse direction: Flip reverse lever
• Angular gauge: Yes
• Mechanism: Click
• Standard: DIN 3122, ISO 6789
• Width: 27.6 mm
• Torque range: 5-25 Nm
• Torque range (secondary scale): 4-18 ft-lb
• Length: 277 mm
• Weight: 580 g
